Graph Traversal

Traverse parent-child relationships using breadth-first (bfs) or depth-first (dfs) search. Useful for tracing process trees, dependency chains, and hierarchical data.

Syntax

bfs(child=field, parent=field, start="value", depth=N, include=[field1,field2])
dfs(child=field, parent=field, start="value", depth=N, include=[field1,field2])

Parameter	Required	Description
child	Yes	Field identifying each node (e.g., process_guid)
parent	Yes	Field referencing the parent node (e.g., parent_process_guid)
start	Yes	Starting node value. Quote values with special characters
depth	No	Max traversal depth (default: 10, max: 50)
include	No	Extra fields to return (e.g., include=image or include=[image,command_line])

Computed fields added to each result:

Field	Description
_depth	Distance from the starting node (0 = start)
_path	Full path from start node (IDs joined by >)

bfs() orders results by _depth (level by level). dfs() orders by _path (follows each chain to its end before backtracking).

Tip

Pipe traversal results into graph() to visualize the tree as an interactive node diagram. Use include= to add fields, then pass them as labels= to annotate each node.

Examples

Trace child processes from a starting process:

event_id=1 | bfs(child=process_guid, parent=parent_process_guid, start="{GUID}")

Include extra fields:

event_id=1
| bfs(child=process_guid, parent=parent_process_guid, start="{GUID}", include=[image,command_line])
| graph(child=process_guid, parent=parent_process_guid, labels=image)

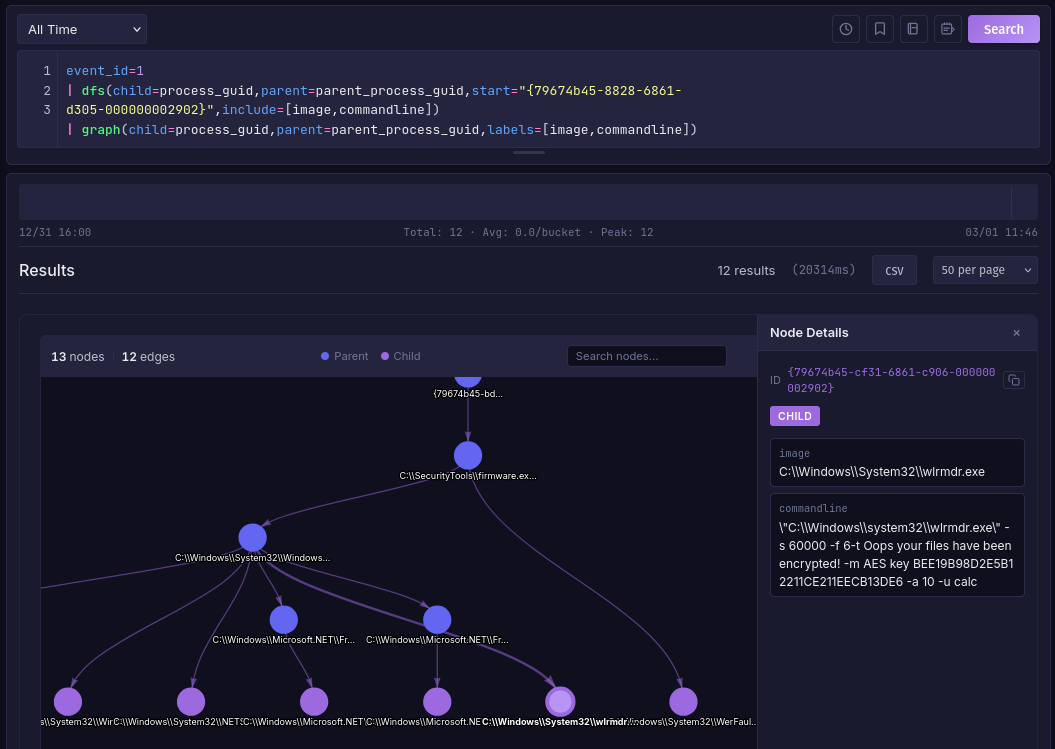

Depth-first, limited to 3 levels:

event_id=1
| dfs(child=process_guid, parent=parent_process_guid, start="{GUID}", depth=3)
| table(process_guid, parent_process_guid, image, _depth, _path)

Pre-filter before traversal:

event_id=1 AND computer_name=WORKSTATION01
| bfs(child=process_guid, parent=parent_process_guid, start="{GUID}", include=image)
| graph(child=process_guid, parent=parent_process_guid, labels=image)
